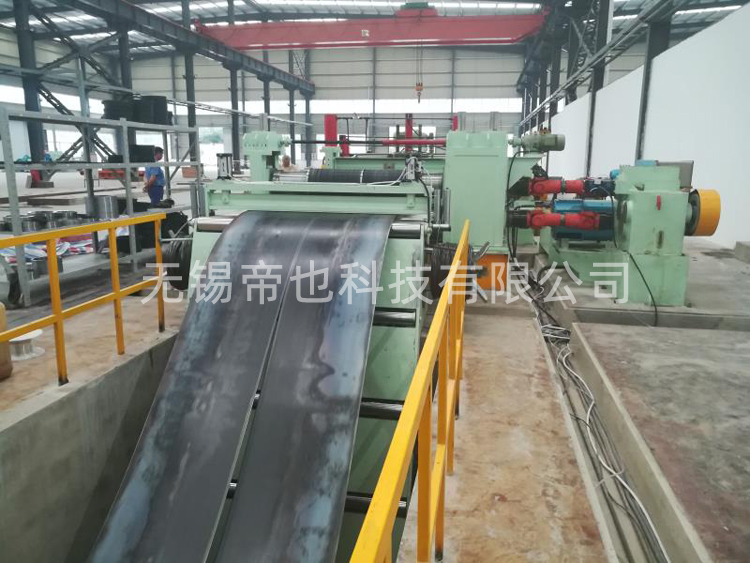

DYZJ Automatic Medium Plate Slitting Line

Coil material：

Plain carbon hot rolled coils, Stainess steel coils

Coil thickness：

1-6mm

2-8mm

3-12mm

4-16mm

6-20mm

Coil width：

800-2000mm

800-2000mm

800-2000mm

800-2000mm

800-2200mm

Coil weight：

≤25000KG

≤30000KG

≤35000KG

≤35000KG

≤40000KG

Coil I.D.：

Φ508，φ610，φ760

Φ508，φ610，φ760

Φ610，φ760，φ820

Φ610，Φ760，Φ820

Φ610，Φ760，Φ820

Coil O.D.：

≤2200mm

≤2200mm

≤2200mm

≤2200mm

≤2200mm

Strip width：

≥10mm

≥18mm

≥30mm

≥40mm

≥50mm

Number of strip：

10-20

8-18

7-15

6-13

5-10

Slitting Accuracy：

+0.25mm

+0.25mm

+0.30mm

+0.30mm

+0.30mm

Line speed：

0-60m/min

0-45m/min

0-38m/min

0-30m/min

0-20m/min

Control System：

PLC Touch Screen

PLC Touch Screen

PLC Touch Screen

PLC Touch Screen

PLC Touch Screen
