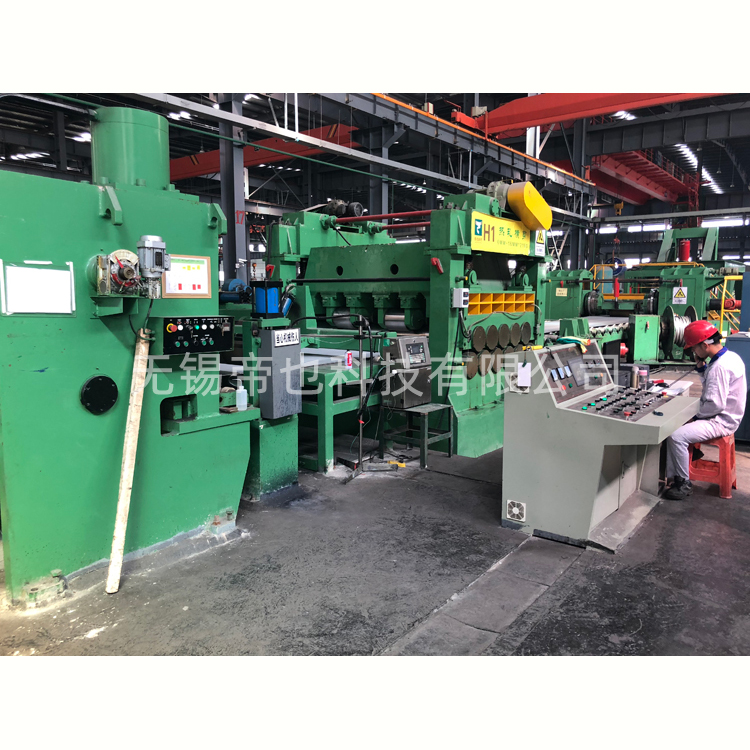

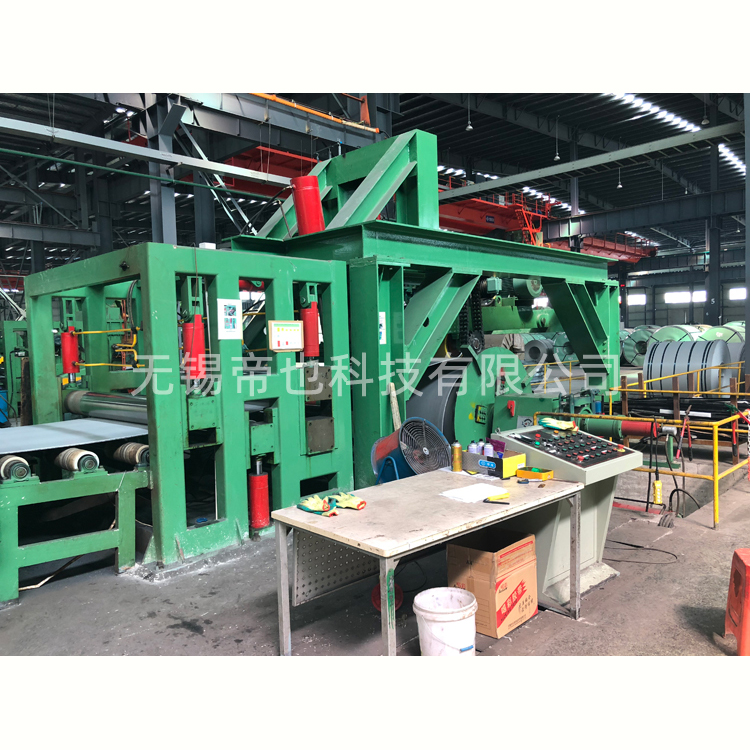

DYJPAutomaticMediumPlateCuttoLengthLine,Plaincarboncoldrolledcoils,Plaincarbonhotrolledcoils,Stainesssteelcoils
Product Parameter Table
Model： | DYJP0.5-5*2000 | DYJP1-6*2000 | DYJP2-8*2000 | DYJP3-12*2000 | DYJP4-16*2200 | DYJP6-20*2200 |
Coil material： | Plain carbon cold rolled coils, Plain carbon hot rolled coils, Stainess steel coils | |||||
Coil thickness： | 0.5-5mm | 1-6mm | 2-8mm | 3-12mm | 4-16mm | 6-20mm |
Coil width： | 500-2000mm | 500-2000mm | 800-2000mm | 800-2000mm | 800-2200mm | 800-2200mm |
Coil weight： | ≤25000KG | ≤30000KG | ≤30000KG | ≤35000KG | ≤35000KG | ≤35000KG |
Coil I.D.： | Φ508,Φ610,Φ760 | Φ508,Φ610,Φ760 | Φ508,Φ610,Φ760 | Φ508,Φ610,Φ760 | Φ508,Φ610,Φ760 | Φ610,Φ760，φ820 |
Cutting range： | 1000-12000mm | 1000-12000mm | 1000-12000mm | 1000-12000mm | 100-12000mm | 1000-12000mm |
Coil O.D.： | ≤2000mm | ≤2000mm | ≤2200mm | ≤2200mm | ≤2200mm | ≤2200mm |
Length tolerance： | +1.5mm | +1.5mm | +1.5mm | +1.5mm | +1.5mm | +1.5mm |
Line speed： | 0-60m/min | 0-40m/min | 0-35m/min | 0-30m/min | 0-25m/min | 0-20m/min |
Control System： | PLC Touch Screen | PLC Touch Screen | PLC Touch Screen | PLC Touch Screen | PLC Touch Screen | PLC Touch Screen |
